parity
The dptools parity command is used to create parity plots for comparing DP energy and force
predictions with DFT values.
Warning
Parity plots can be deceiving! Just because your parity plots look good does not mean you have a good model. Model ensembles are much more reliable for checking how well your model has sampled the relevant phase space of your system(s).
General usage,
$ dptools parity [-h] [-m MODEL] [-l {mse,mae,rmse}] [-s file_name] [-r] [--per-atom] [--xyz] [--fancy] [system ...]
positional arguments:
system Paths to deepmd-kit dataset folders, .traj, .db, etc. (default: None)
optional arguments:
-h, --help show this help message and exit
-m MODEL, --model MODEL
Specify path of frozen .pb deepmd model to use (default: ./graph.pb)
-l {mse,mae,rmse}, --loss-function {mse,mae,rmse}
Type of loss function to display for parity plot error (default: mse)
-s file_name, --save-plot file_name
Name of file (with extension) to save parity plot to. (default: None)
-r, --rasterized Rasterize plot data to reduce size of file (default: False)
--per-atom Normalize energies per number of atoms (default: False)
--xyz Plot each xyz force component separately (default: False)
--fancy Create fancy density heat map for forces parity plot (default: False)
Quick reference examples
$ dptools parity
$ dptools parity /path/to/dataset/system*/test/set*
$ dptools parity -m ../old_graph.pb test_set.traj
$ dptools parity -l mae --per-atom
$ dptools parity -l mae --fancy --xyz
Create parity plot for test sets
If you run,
$ dptools parity
with no additional arguments while in a directory that was used for training a deepmd model (i.e., the working directory should contain a graph.pb file and in.json), dptools will check the in.json file for all systems used for training, and create parity plots for the corresponding test sets located in the dataset folder.
The typical output should look something like,
If your energy values span a large range like the image above, you may consider plotting
the energy per atom with the --per-atom flag.
$ dptools parity --per-atom
Create parity plot from ASE/DFT output
If you have for example several DFT single point calculations saved in a .traj file or similar, you can provide the path to the file as an optional last argument,
$ dptools parity dft_single_points.traj
Note that you must be located in the directory with your trained graph.pb file, or provide the path like,
$ dptools parity -m /path/to/my_graph.pb dft_single_points.traj

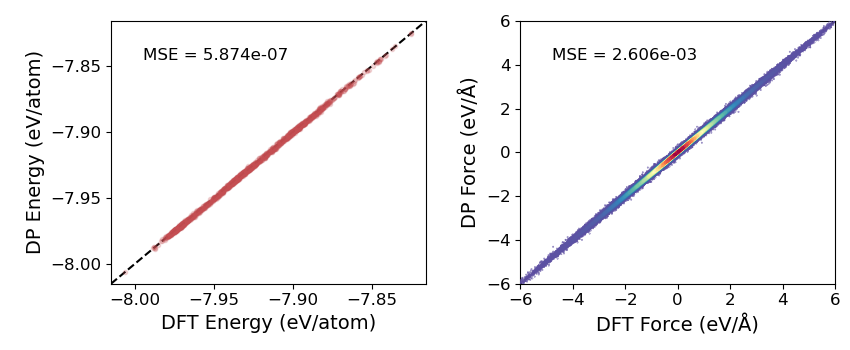

Create density heat map for forces parity plot
A prettier version of the parity plot with a color map representing the density of force predicitons can be created with for example,
$ dptools parity --per-atom --fancy
Additional options
By default, the mean-squared error (MSE) of the predictions is displayed on the parity plot. You
can change this to MAE or RMSE with the -l or --loss-function flag,
$ dptools parity -l mae
You can also choose to plot the 3 force components (Fx, Fy, Fz) separately,
$ dptools parity --xyz
Note
Plotting each force component separately is typically unnecessary as the error of the force predictions will be similar for all directions, leading to redundant plots. However, for some systems (such as when one dimension of your system’s unit cell is significantly smaller, e.g., x << y and z), you may see some discrepency between the accuracy of each direction’s force prediction, and it might make sense to plot them separately.
If you want to save the resulting plots to a file as opposed to opening the display, specify
-s or --save-plot with the name of the file like,
$ dptools parity -s parity.png
If you’re saving to a vector graphics format (.pdf, .svg, etc.) and you have a lot of data,
you probably want to rasterize (-r or --rasterized) the image to reduce the file
size/loading times,
$ dptools parity -r -s parity.pdf
